BLD180 ATEX Linkable Light & Explosion Proof Linkable Light for Hazardous Areas

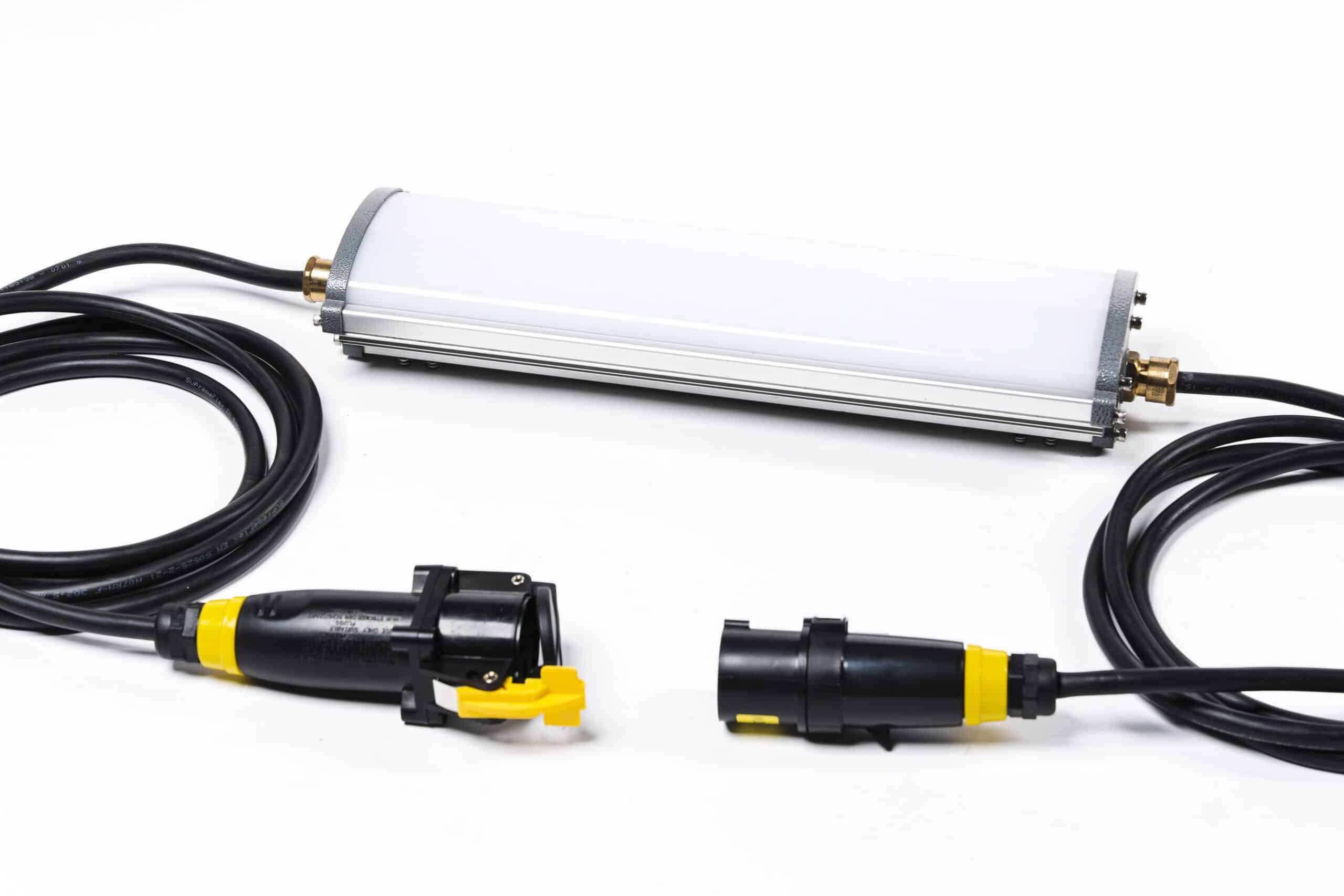

The BLD180 is a robust, portable and fixed linkable LED lamp designed for safe use in Zone 2 (gas) and Zone 21 to 22 (dust) hazardous environments. With a light output of 1,800 or 3,600 lumens and IP66 ingress protection, it delivers powerful, shadow-free illumination in even the most demanding conditions.

As an ATEX linkable light, the BLD180 can be connected in series to create continuous, scalable coverage across larger work areas, making it ideal for tank maintenance, shutdown operations, offshore platform maintenance, and confined space entry. Multiple mounting options including ceiling bracket, pipe clamp, and magnetic bracket give it the flexibility to be deployed quickly wherever it is needed.

Certified to CE, ATEX, RoHS, and EMC standards and rated for ambient temperatures of -40 to +55°C, this explosion proof linkable light is built to perform reliably across a wide range of industrial and petrochemical applications. Available in both AC and DC power configurations to suit permanent installations and temporary site setups.

Request a free demo of the BLD180 or explore the full hazardous area lighting range.

Specifications
Installation Zone2 (Gas) & Zone 21 – Zone 22 (Dust)
Approvals CE / ATEX / ROHS / EMC
Ex Rating II 3G Ex nAIIC T6 Gc / II 2D Ex tbIIIC IP66 T80˚C Db OR Non Ex available
Voltage AC/DC 24 to 48 / 110 to 240
Rated Wattage 18 / 36
Output Lumens 1800 / 3600
Colour Temperature 5000 – 5500K
IP Grade IP66
Power Factor 1
Ambient Temperature ˚C -40 to + +55
Weight kg 2 / 2.8
Mounting Options Ceiling Bracket, Pipe Clamp or Magnetic Bracket
