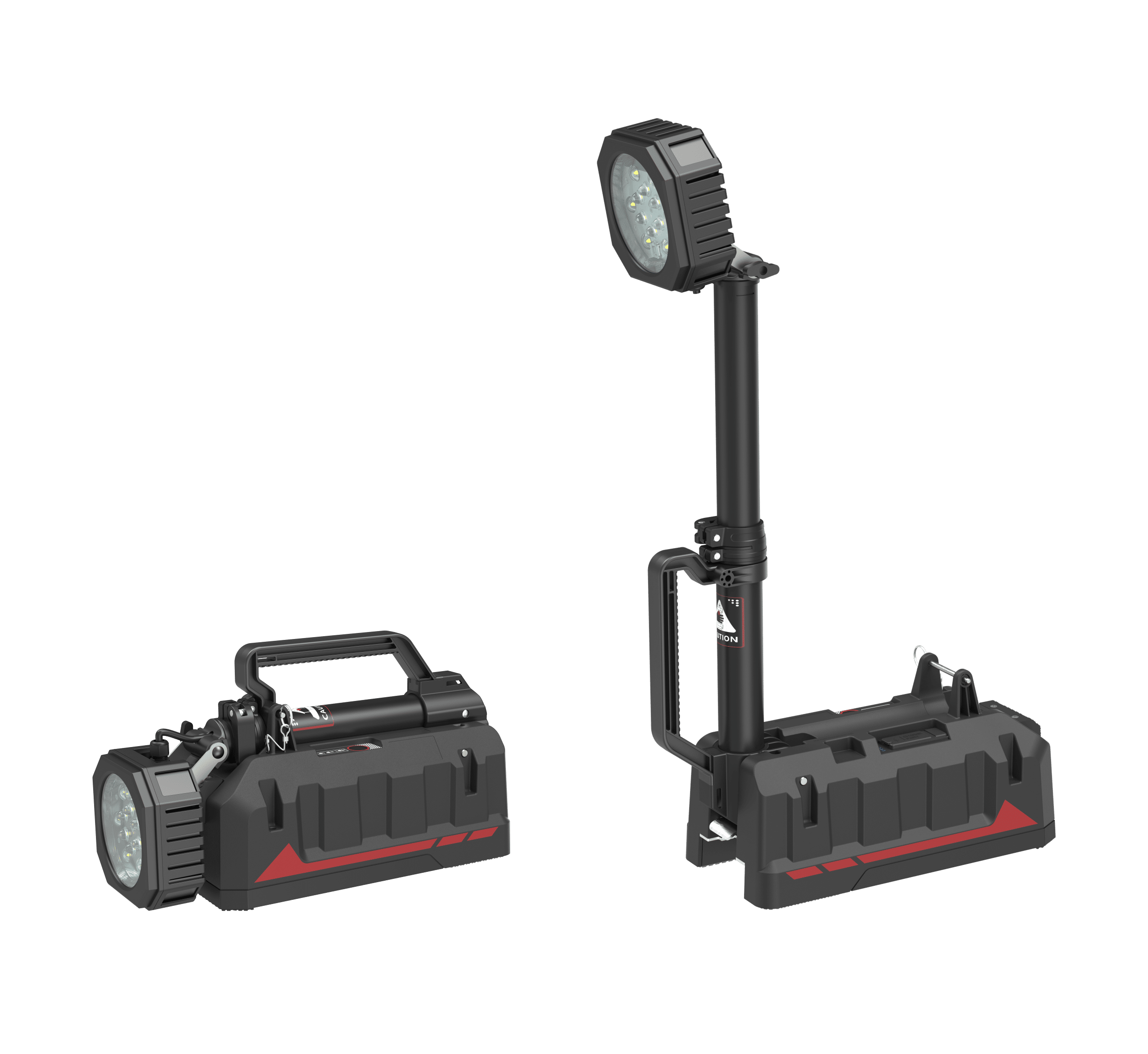

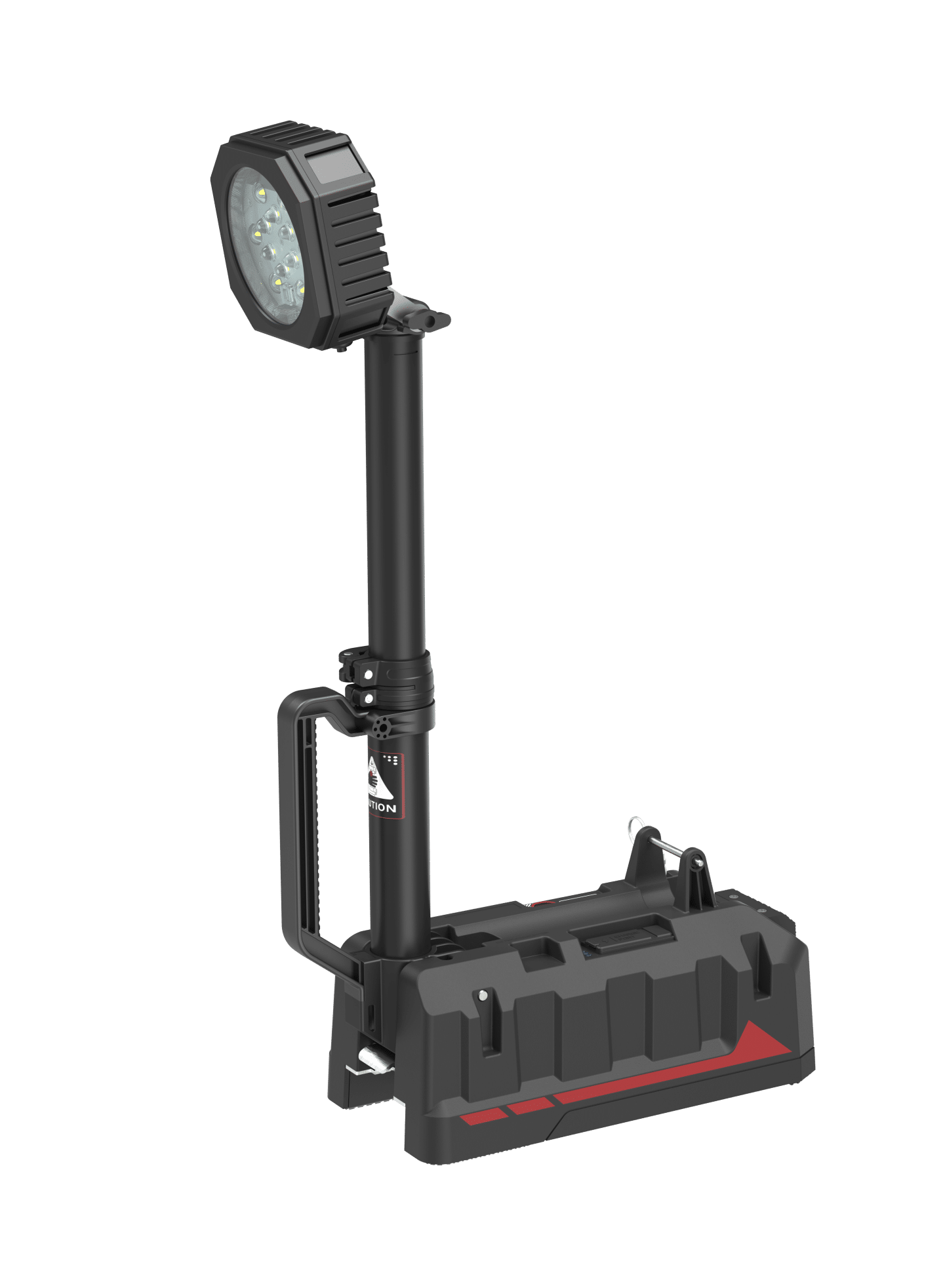

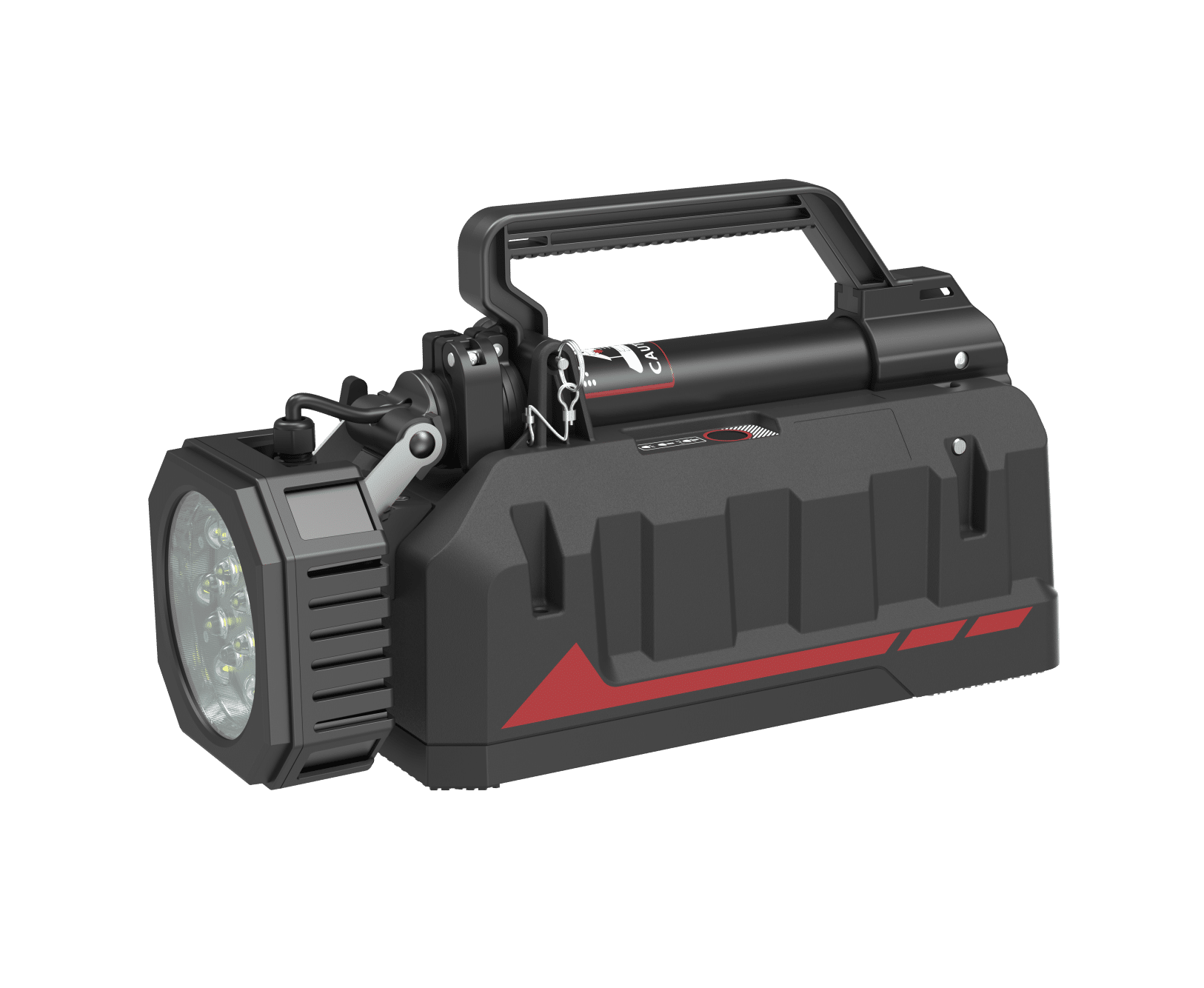

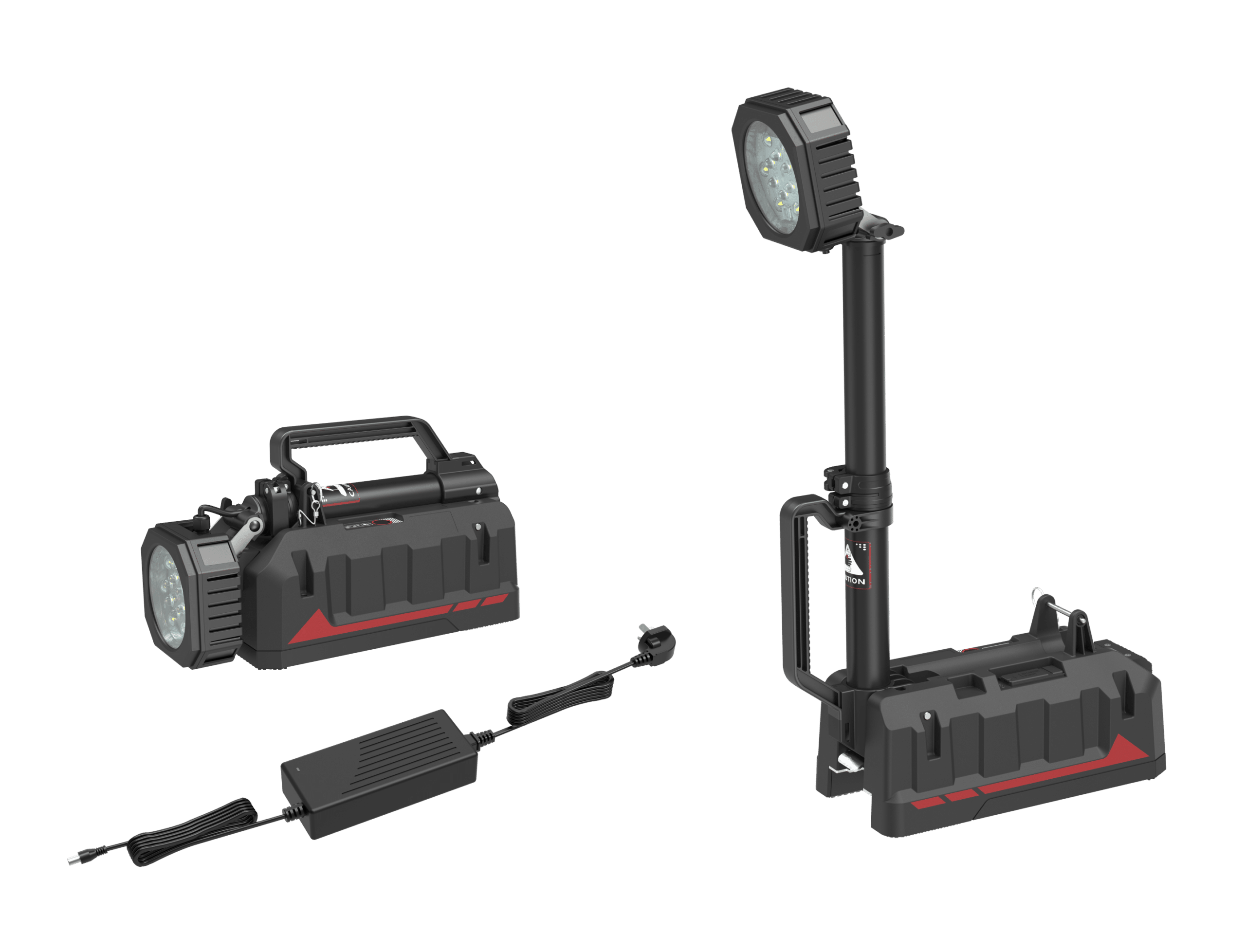

ExMP80R

Explosion Proof Mobile Lighting Equipment (Area Lights)

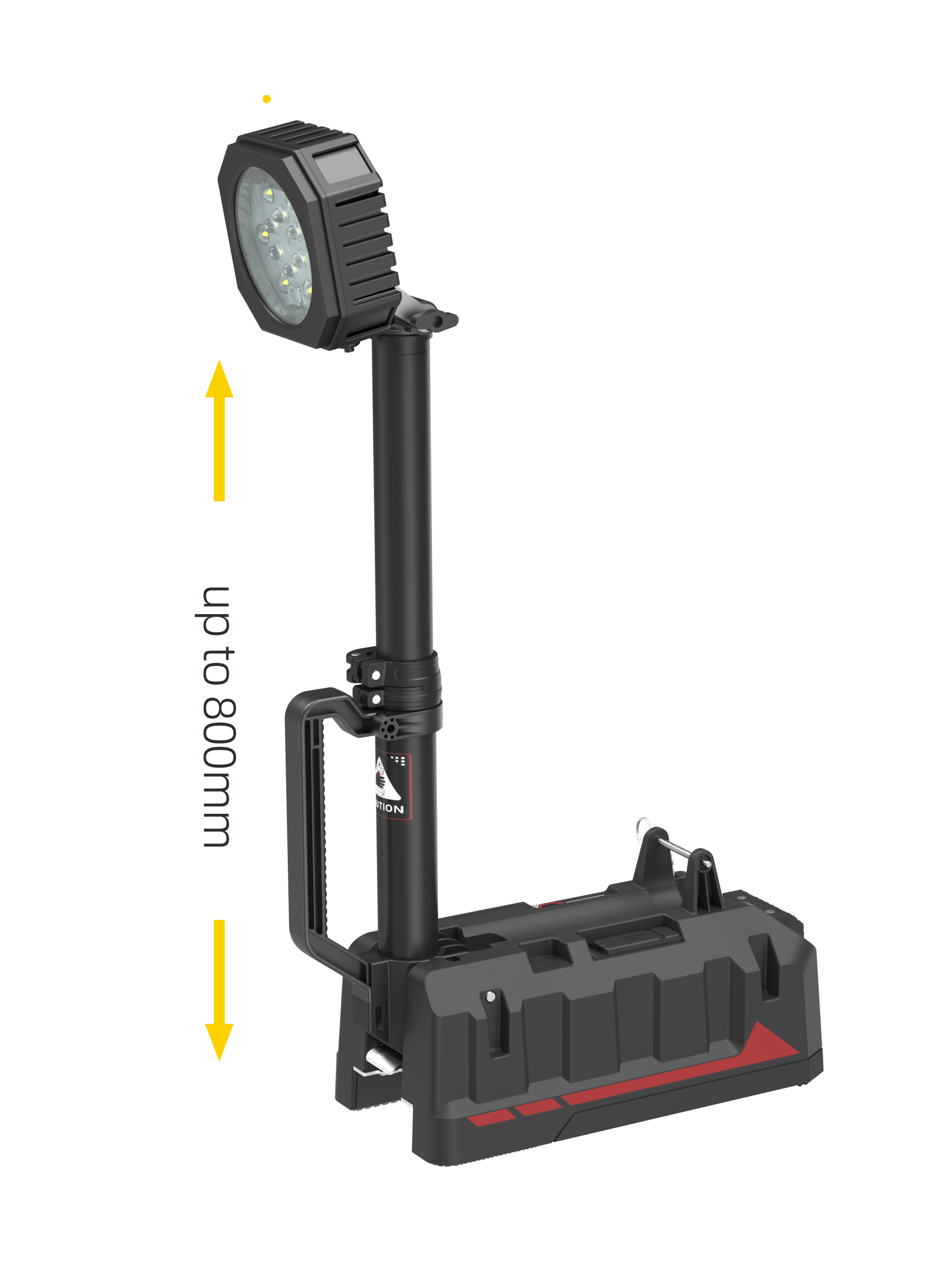

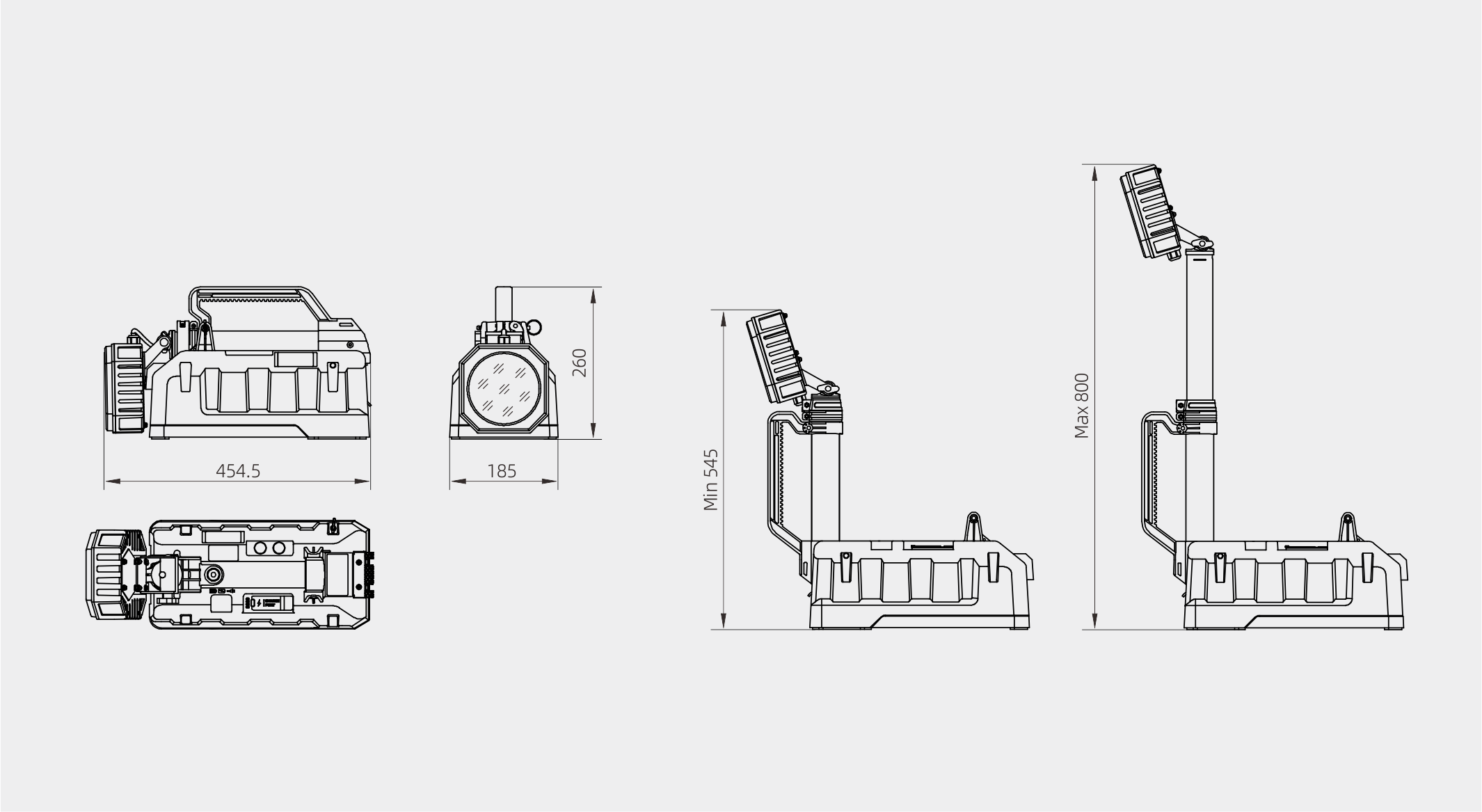

The ExMP80R is an explosion-proof mobile lighting tower for demanding hazardous area environments. ATEX/IECEx certified for Class II Zone 1/2 & Class III Zone 21/22 areas, with an IP66 rating and wide -20°C to +55°C operating range. Featuring rapid lamp deployment, 5500 lumens max output, and coverage of up to 50 ㎡. The lamp head offers 300° horizontal and 115° vertical adjustment, with 800mm mast height extension. Providing up to 18 hours runtime on a 7-hour charge the EXMP80R is ready to work in the toughest of industrial and hazardous area environments.

ExMP80R Specifications
Usage II Zone 1/2, and III Zone 21/22
Working ambient temp −20°C ≤ Ta ≤ +55°C
Ingress protection IP66 / IP67 (1 m, 30 min)
Corrosion-proof grade WF2
CCT 6500K
Luminous flux Floodlight: 2500 lm
Spotlight: 2500 lm
Flood + Spotlight (High): 5500 lm
Flood + Spotlight (Low): 1500 lm
Run time >10 h (Floodlight)
>10 h (Spotlight)
>6 h (Flood + Spotlight High)
>18 h (Flood + Spotlight Low)
Battery type 12 × 21700 lithium battery
Battery capacity 43.2 V / 5000 mAh
Charging time < 7 h
Recharging cycles 500 cycles

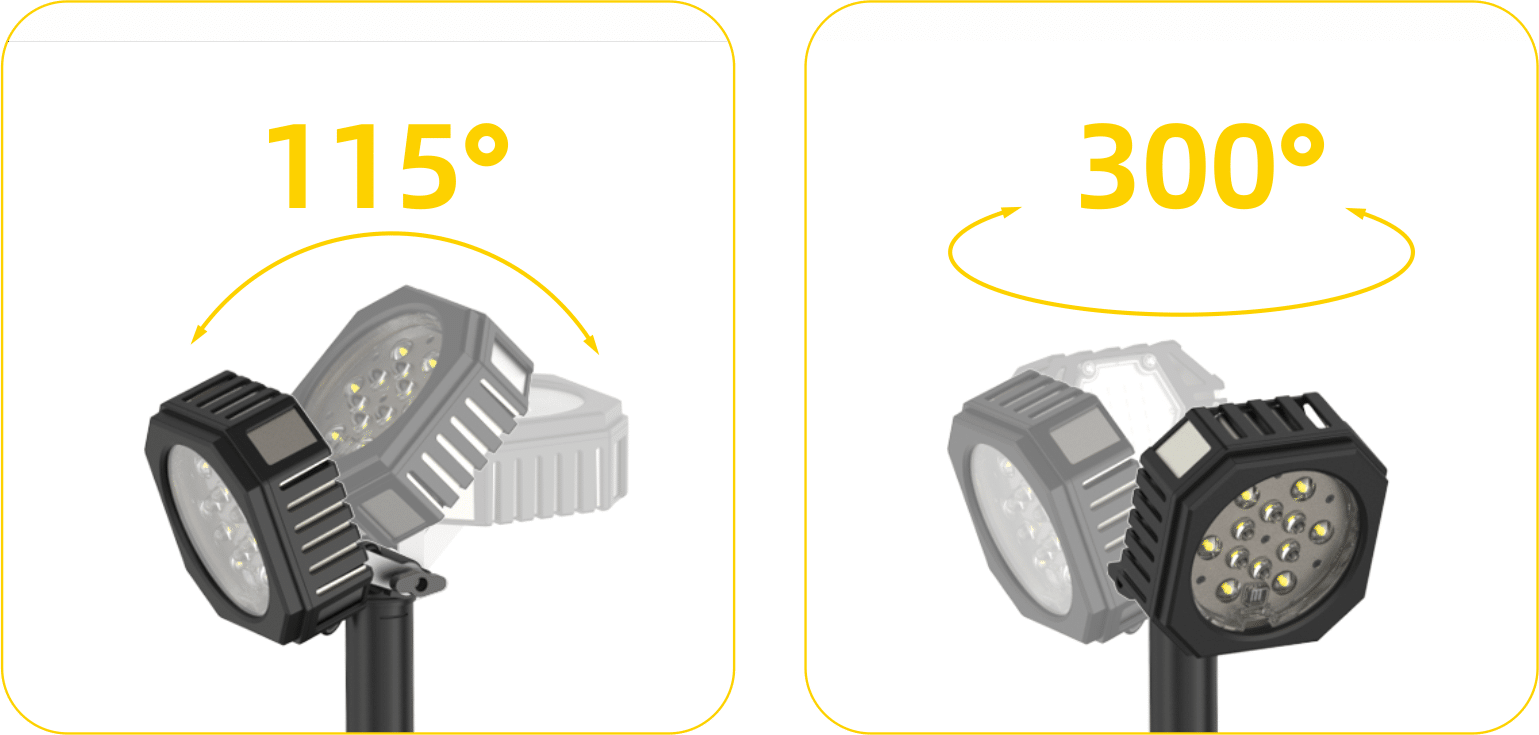

Lamp rotation angle 300° (horizontal) / 115° (vertical)
Weight < 7 kg

Major benefits

Premium Material: High Performance Nylon
-45°C, 1m Impact Resistant
Special Environment Applicability
Multiple Helmet Brackets for Different Hard Hats

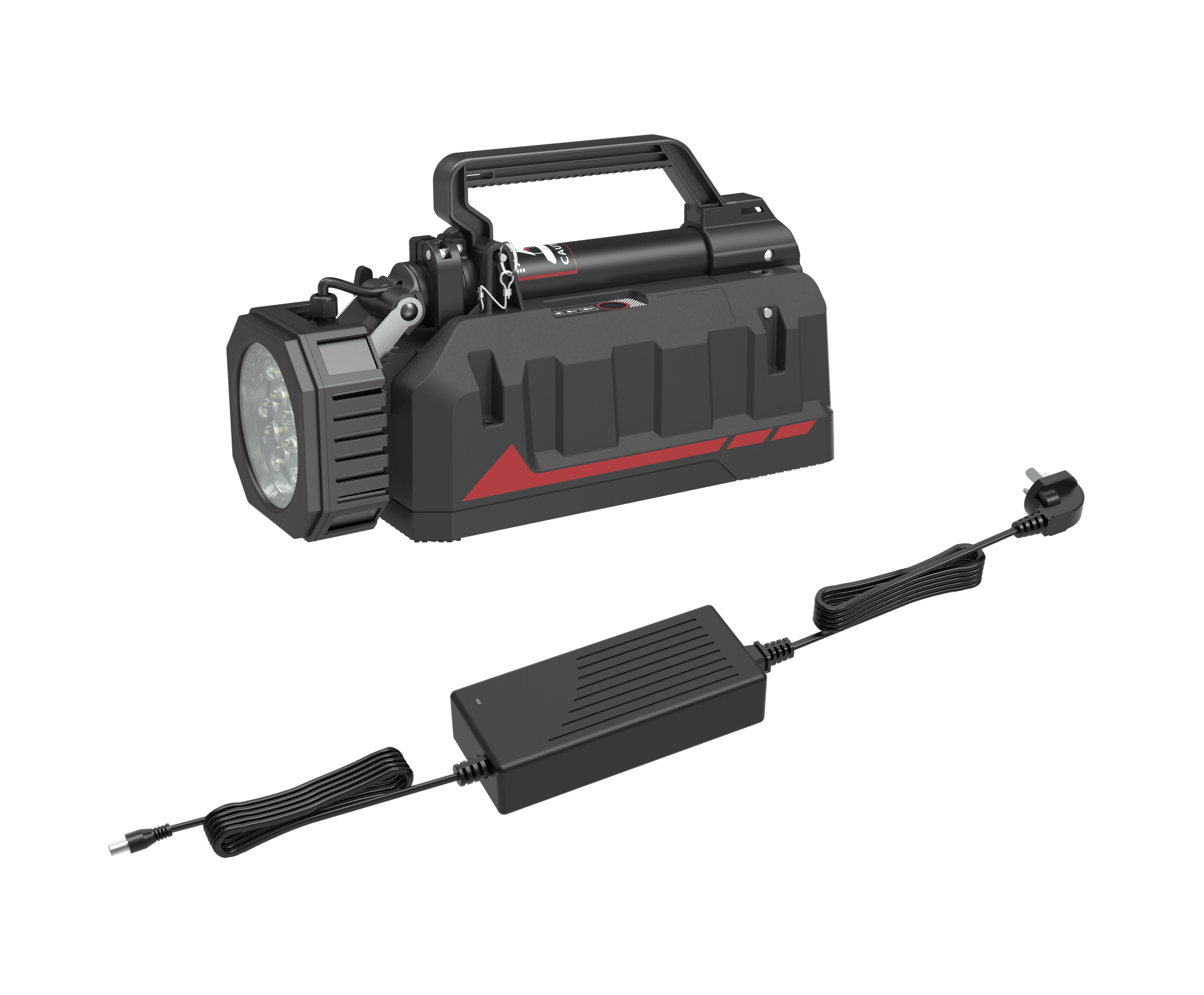

2 Charging Modes Serving Various Needs
Multi Charging Types

Superior performance, quality and reliability.
