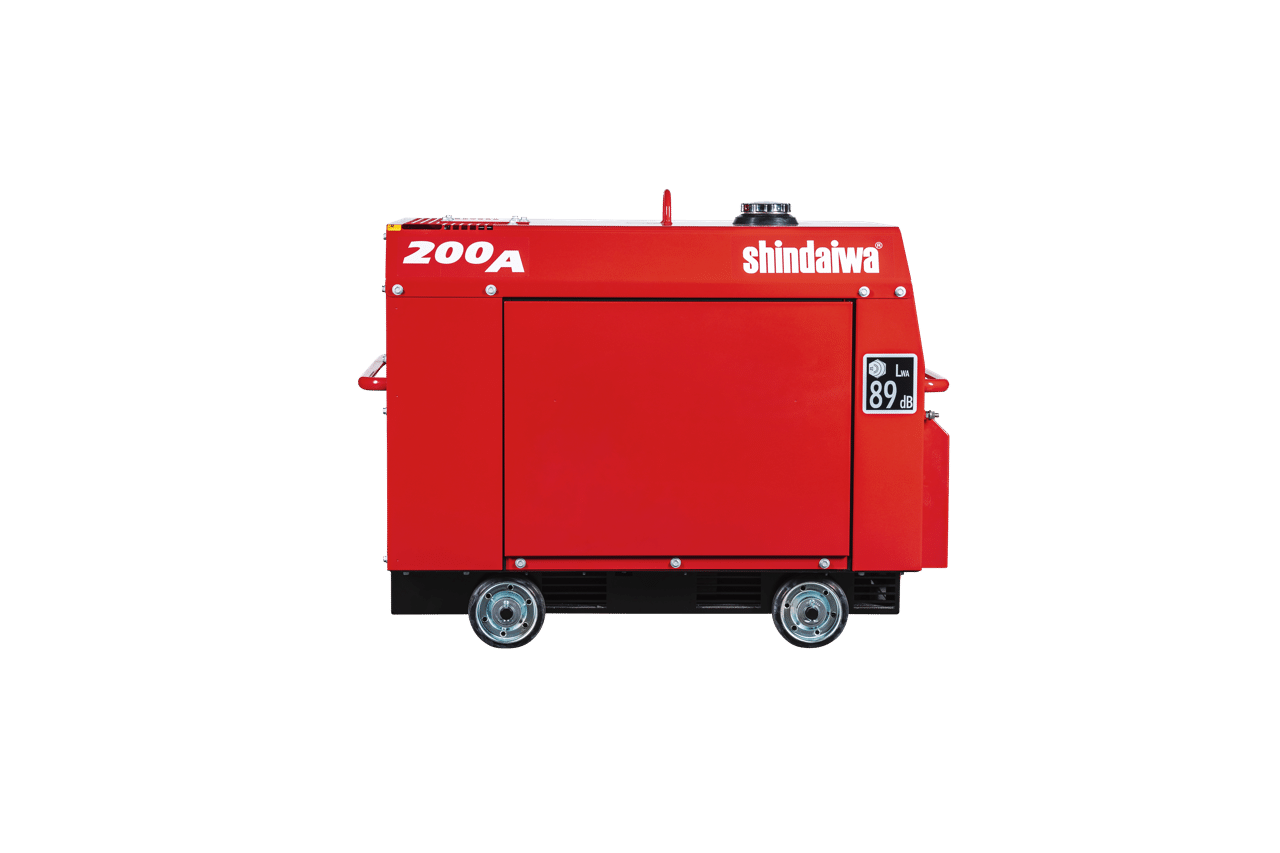

ECO 200/UK Welder Generator

Diesel engine driven Welder Generator powered by Kubota.

The Shindaiwa Eco 200 diesel welder generator is built to provide 50 to 200Amps of DC welding current and offers simultaneous use of welding and 110V AC auxiliary power. Superior welding performance ensures the machine is compliant with welding all types of DC electrodes including cellulosics. The powerful 3kVA auxiliary can comfortably power larger power tools including 9 inch grinders. The highly robust machine can be mounted on either castor wheels or on a wheelbarrow for easy portability around work sites. The engine driven welder generator is powered by a water-cooled Kubota engine ensuring long term reliability and performance with low fuel consumption and emissions.

Major benefits

Total reliability and performance with smooth starting and stable constant arc
Simultaneous use of welder and AC power
Fuel Saving Auto Idling system
Enhanced Safety with RCD Breakers as standard
Fully CE, EMC and sound tested for UK market requirements
3 Year Warranty

Optional extras

Paralleling Box
Remote Control with 50m extension cable
Welding Cables
Wheelbarrow
Spark Arrestor Silencer
Overspeed Shutdown Valve
Full Offshore Specification



View our full range of  Welder Generators

Specifications
Model Eco200
Rated Voltage (V) Max 85
Current Adj Range (A) 50 – 200
Welding Rod (mm) 2.0 – 5.0
Rated Frequency (Hz) 50/60
(AC Generator) Phase 1 – Phase
Rated Voltage (V) 110 CTE
Power Factor 1
Rated Output (kVA) 3.0 / 3.3
Rating Continuous
(Engine) Make/Model Kubota Z482-B (Stage 5 Certified)
Rated Speed (min -1) 3000 / 3600
Fuel Diesel
Fuel Take Capacity (L) 15
Run Time (H) 12
Noise Level dB (LWA) 94
Dimensions Skid Wheelbarrow
(Set) Length (mm) 730 1080
Width (mm) 545 670
Height (mm) 647 860
Dry Weight (kg) 222 249

Superior performance, quality and reliability.

Shindaiwa is the only company in the UK to offer a full 3 year warranty on all Welder and Generator products.
